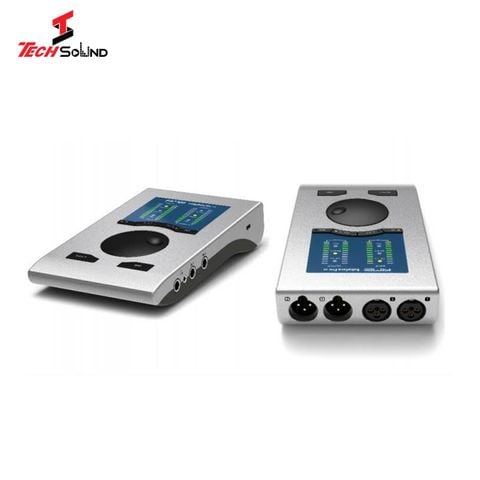

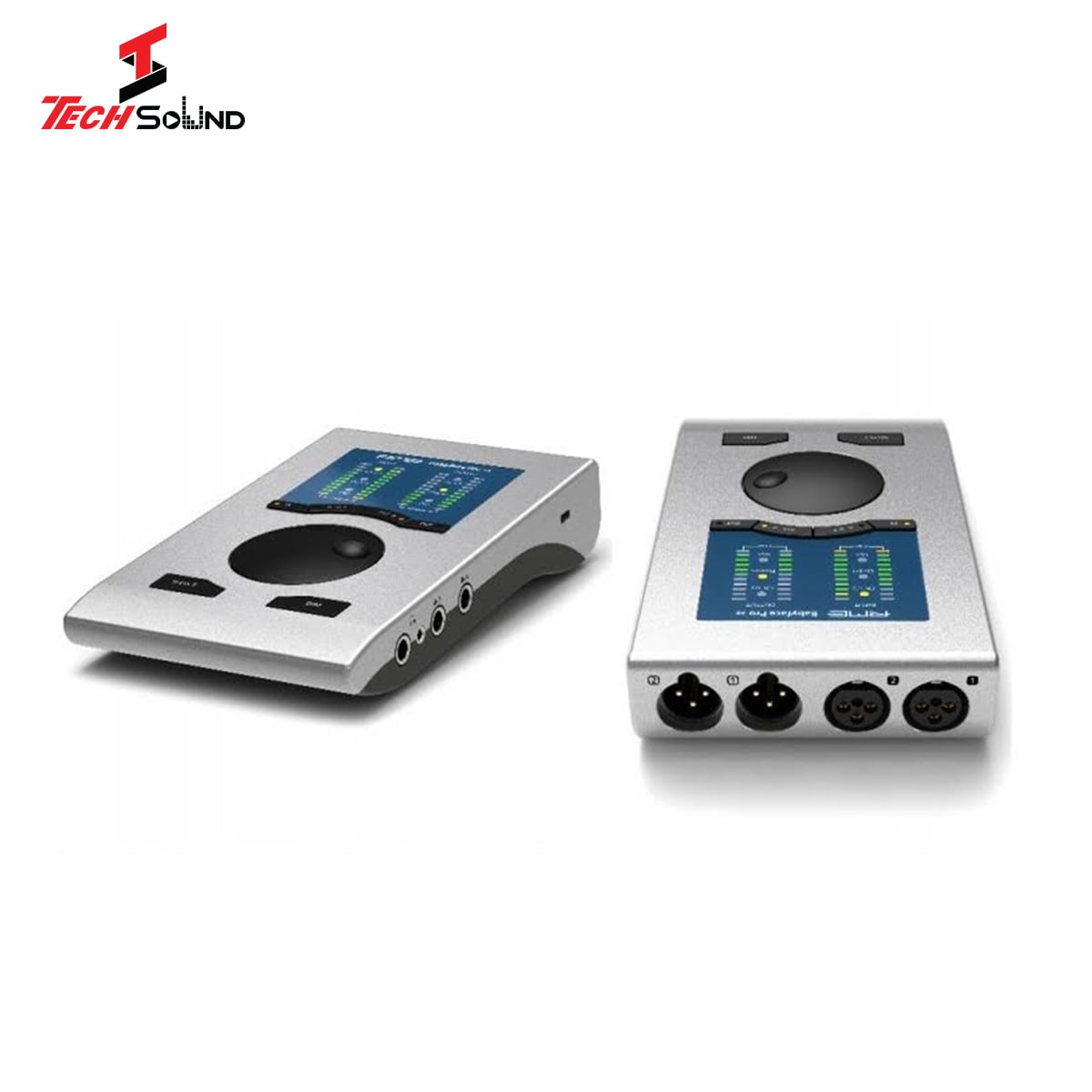

RME Babyface PRO Soundcard

Thương hiệu: RME Mã sản phẩm: RMEPRO

So sánh

19,500,000₫ Giá chưa VAT

Chiếc

Số lượng:

☎ Hotline 0942 97 96 96 (8:00 - 22:00)

☎ Kinh doanh 0933 469 555 (8:00 - 22:00)

👉 Tư vấn Chat ngay qua Zalo (24/24)

Ưu đãi tại TECHSOUND

Giao hàng nhanh trong 2h (chỉ áp dụng khu vực nội thành Hà Nội)
Liên hệ trực tiếp để có giá tốt hơn
Sản phẩm nhập khẩu chính ngạch 100%
Chế độ bảo hành tốt nhất Việt Nam

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

RME Babyface PRO Soundcard

24-Channel 192 kHz bus-powered professional USB 2.0 Audio Interface

The exciting new Babyface Pro once again demonstrates RME’s absolute commitment to superior craftsmanship, not only in audio circuits and driver development, but also in mechanics.

Created with the highest precision from a block of aluminum, this high-end yet portable interface incorporates newly designed analog and digital circuits. Its innovative energy saving technologies provide supreme fidelity with no compromises in level, noise or distortion.

RME Babyface PRO Soundcard

Progressive Interface

For the main I/O RME have designed a completely new XLR socket, which integrates seamlessly into the housing and saves space. The two headphone outputs, offering TRS and mini-jack sockets in parallel, have completely separate driver stages to perfectly match low and high impedance headphones, guaranteeing pristine sonic results no matter what type of headphone is used.

Two digitally controlled preamps provide inpidually switchable 48V phantom power. These brand new circuits feature a gain range of 76 dB, adjustable in steps off 1 dB, including a relay-driven PAD, resulting in exceptional EIN (Equivalent Input Noise) performance as well as line overload protection, and enough gain for even the lowest level microphones.

Babyface Pro’s incredibly efficient design almost never requires an external power supply – it’s perfectly stable on USB 3 bus power, and also most USB 2 ports, with no degradation in any technical specification. This makes it perfect for mobile recording, even with a pair of your favourite condenser microphones.

The comprehensive feature set continues with an optical TOSLINK I/O; use as either an ADAT port with SMUX support or SPDIF for sessions up to 192 kHz. In combination with an external ADAT converter, the Babyface Pro fully supports 12 analog inputs as well as 12 outputs, making it ideal for both live and studio multi-track applications. You can plug any instrument, line or high impedance, into Babyface Pro’s jack inputs 3 & 4. Record your guitar on the go, with no additional hardware required. MIDI I/O via an included breakout cable completes the package.

RME Baby face pro

Professional Features

Straight to the core without interference: the reference design of the Babyface Pro leaves nothing to be desired.

RME devices are designed to conserve music as it is. Audio signals are passed in their entirety, nothing added, nothing taken. For the new Babyface, the audio circuits have been improved to meet even highest gain levels with best dynamic range.

The clever user interface is informative and clearly laid out. It makes access to every feature and configuration mode of the Babyface Pro intuitive and easy to use.

Even in stand-alone mode, routing and mixing of inputs to outputs directly on the device opens a whole world of possible applications.

Connectivity

12 Input and 12 Output channels
4 x Analog Inputs (Mic, Line, Instrument)
4 x Analog Outputs (2 x XLR, 2 x Phones)
1 x ADAT I/O or 1 x SPDIF I/O optical
1 x MIDI I/O
1 x USB 2.0 (USB 3 compatible)
Digital Gain control on all inputs
Separate outputs for high and low impedance headphones

Xem thêm

Thông số kỹ thuật

AD, Microphone/Line 1-2

Input: XLR, electronically balanced

Input impedance balanced: 2 kOhm, 5.2 kOhm with PAD

Input impedance unbalanced: 1 kOhm, 2.6 kOhm with PAD

Signal to Noise ratio (SNR): 113 dB RMS unweighted, 116 dBA

Frequency response @ 44.1 kHz, -0.1 dB: 18 Hz – 20.8 kHz

Frequency response @ 96 kHz, -0.5 dB: 7 Hz – 45.8 kHz

Frequency response @ 192 kHz, -1 dB: 5 Hz – 92 kHz

With PAD active : -0.1 dB 8 Hz, -0.5 dB < 4 Hz, -1 dB < 3 Hz

THD: < -110 dB, < 0.00032 %

THD+N: < -104 dB, < 0.00063 %

THD @ 30 dB Gain: < -107 dB, < 0.0004 %

THD+N @ 30 dB Gain: < -100 dB, < 0.001 %

Channel separation: > 110 dB

Gain range: -11 dB up to +65 dB

Maximum input level XLR, Gain 0 dB: +8 dBu, PAD +19 dBu

Maximum input level XLR, Gain 65 dB: -57 dBu, PAD -46 dBu

AD, Line/Instrument In 3-4

As Microphone/Line 1-2, but:

Input: 6.3 mm TS jack, unbalanced

Input impedance: 1 MOhm

Signal to Noise ratio (SNR): 114 dB RMS unweighted, 117 dBA

Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.8 kHz

Frequency response @ 96 kHz, -0.5 dB: < 3 Hz – 45.8 kHz

Frequency response @ 192 kHz, -1 dB: < 2 Hz – 92 kHz

Maximum input level @+4 dBu, Gain 0 dB: +13 dBu

Maximum input level @-10 dBV, Gain 9 dB: -5 dBu

DA, Line Out 1-2

Dynamic range (DR): 115 dB RMS unweighted, 118 dBA

Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz – 20.8 kHz

Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 45 kHz

Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz

THD: - 106 dB, 0.0005 % • THD+N: -102 dB, 0.0008 %

Channel separation: > 110 dB

Output: XLR balanced

Output impedance: 300 Ohm balanced, 150 Ohm unbalanced

Output level @ 0 dBFS: Balanced +19 dBu, unbalanced +13 dBu

DC @ 0 dBFS: 6.35mm 4.8 V, 3.5mm 2.4 V, XLR bal. 9.6 V

DA, Phones 3/4

AS DA Line Out, but:

Output: 6.3 mm TRS jack, unbalanced

Output impedance: 10 Ohm

Output level at 0 dBFS, 1 kOhm load: +13 dBu

Max power @ 0.1% THD: 50 mW

Output: 3.5 mm TRS jack, unbalanced

Output impedance: 2 Ohm

Output level at 0 dBFS, 1 kOhm load: +7 dBu

Max power @ 0.1% THD: 70 mW

MIDI

1 x MIDI I/O via breakout cable with 2 x 5-pin DIN jacks

Galvanically isolated by optocoupled input

Hi-speed mode: Jitter and response time typically below 1 ms

Separate 128 byte FIFOs for input and output 25.3

Digital

Clocks: Internal, ADAT In, SPDIF In

Low Jitter Design: < 1 ns in PLL mode, all inputs

Internal clock: 800 ps Jitter, Random Spread Spectrum

Jitter suppression of external clocks: > 50 dB (2.4 kHz)

Effective clock jitter influence on AD and DA conversion: near zero

PLL ensures zero dropout, even at more than 100 ns jitter

Digital Bitclock PLL for trouble-free varispeed ADAT operation

Supported sample rates: 28 kHz up to 200 kHz

Digital Inputs

ADAT Optical

1 x TOSLINK

Standard: 8 channels 24 bit, up to 48 kHz

Double Speed (S/MUX): 4 channels 24 bit 96 kHz

Quad Speed (S/MUX4) : 2 channels 24 bit 192 kHz

Bitclock PLL ensures perfect synchronisation even in varispeed operation

Lock Range: 31.5 kHz – 50 kHz

Jitter when synced to input signal: < 1 ns

Jitter suppression: > 50 dB (2.4 kHz)

SPDIF optical

1 x optical, according to IEC 60958

Accepts Consumer and Professional format

Lock Range: 27 kHz – 200 kHz

Jitter when synced to input signal: < 1 ns

Jitter suppression: > 50 dB (2.4 kHz) 25.5

Digital Outputs

ADAT optical

1 x TOSLINK

Standard: 8 channels 24 bit, up to 48 kHz

Double Speed (S/MUX): 4 channels 24 bit 96 kHz

Quad Speed (S/MUX4) : 2 channels 24 bit 192 kHz

SPDIF optical

1 x optical, according to IEC 60958

Format Consumer (SPDIF) according to IEC 60958

Sample rate 28 kHz up to 200 kHz

General

Power supply: USB bus power or external power supply

Typical power consumption: 2.9 Watts

Max. power consumption: 4.6 Watts

Current at 5 V bus power operation: 600 mA (2.9 Watts)

Current at 12 V external power: 240 mA (2.9 Watts)

Dimensions (WxHxD): 108 x 35 x 181 mm (4.25" x 1.4" x 7.1")

Weight: 680 g ( 1.5 lbs)

Temperature range: +5° up to +50° Celsius (41° F up to 122°F)

Relative humidity: < 75%, non condensing

Driver support

- Windows 10 / 8 / 7 / Vista / XP SP2 (32 & 64 bit)

- Apple Mac OS X 10.6 or up (Core Audio)

System Requirements

Computer with at least Pentium Core 2 Duo CPU.

Xem thêm

Thông số kỹ thuật

AD, Microphone/Line 1-2

Input: XLR, electronically balanced

Input impedance balanced: 2 kOhm, 5.2 kOhm with PAD

Input impedance unbalanced: 1 kOhm, 2.6 kOhm with PAD

Signal to Noise ratio (SNR): 113 dB RMS unweighted, 116 dBA

Frequency response @ 44.1 kHz, -0.1 dB: 18 Hz – 20.8 kHz

Frequency response @ 96 kHz, -0.5 dB: 7 Hz – 45.8 kHz

Frequency response @ 192 kHz, -1 dB: 5 Hz – 92 kHz

With PAD active : -0.1 dB 8 Hz, -0.5 dB < 4 Hz, -1 dB < 3 Hz

THD: < -110 dB, < 0.00032 %

THD+N: < -104 dB, < 0.00063 %

THD @ 30 dB Gain: < -107 dB, < 0.0004 %

THD+N @ 30 dB Gain: < -100 dB, < 0.001 %

Channel separation: > 110 dB

Gain range: -11 dB up to +65 dB

Maximum input level XLR, Gain 0 dB: +8 dBu, PAD +19 dBu

Maximum input level XLR, Gain 65 dB: -57 dBu, PAD -46 dBu

AD, Line/Instrument In 3-4

As Microphone/Line 1-2, but:

Input: 6.3 mm TS jack, unbalanced

Input impedance: 1 MOhm

Signal to Noise ratio (SNR): 114 dB RMS unweighted, 117 dBA

Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.8 kHz

Frequency response @ 96 kHz, -0.5 dB: < 3 Hz – 45.8 kHz

Frequency response @ 192 kHz, -1 dB: < 2 Hz – 92 kHz

Maximum input level @+4 dBu, Gain 0 dB: +13 dBu

Maximum input level @-10 dBV, Gain 9 dB: -5 dBu

DA, Line Out 1-2

Dynamic range (DR): 115 dB RMS unweighted, 118 dBA

Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz – 20.8 kHz

Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 45 kHz

Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz

THD: - 106 dB, 0.0005 % • THD+N: -102 dB, 0.0008 %

Channel separation: > 110 dB

Output: XLR balanced

Output impedance: 300 Ohm balanced, 150 Ohm unbalanced

Output level @ 0 dBFS: Balanced +19 dBu, unbalanced +13 dBu

DC @ 0 dBFS: 6.35mm 4.8 V, 3.5mm 2.4 V, XLR bal. 9.6 V

DA, Phones 3/4

AS DA Line Out, but:

Output: 6.3 mm TRS jack, unbalanced

Output impedance: 10 Ohm

Output level at 0 dBFS, 1 kOhm load: +13 dBu

Max power @ 0.1% THD: 50 mW

Output: 3.5 mm TRS jack, unbalanced

Output impedance: 2 Ohm

Output level at 0 dBFS, 1 kOhm load: +7 dBu

Max power @ 0.1% THD: 70 mW

MIDI

1 x MIDI I/O via breakout cable with 2 x 5-pin DIN jacks

Galvanically isolated by optocoupled input

Hi-speed mode: Jitter and response time typically below 1 ms

Separate 128 byte FIFOs for input and output 25.3

Digital

Clocks: Internal, ADAT In, SPDIF In

Low Jitter Design: < 1 ns in PLL mode, all inputs

Internal clock: 800 ps Jitter, Random Spread Spectrum

Jitter suppression of external clocks: > 50 dB (2.4 kHz)

Effective clock jitter influence on AD and DA conversion: near zero

PLL ensures zero dropout, even at more than 100 ns jitter

Digital Bitclock PLL for trouble-free varispeed ADAT operation

Supported sample rates: 28 kHz up to 200 kHz

Digital Inputs

ADAT Optical

1 x TOSLINK

Standard: 8 channels 24 bit, up to 48 kHz

Double Speed (S/MUX): 4 channels 24 bit 96 kHz

Quad Speed (S/MUX4) : 2 channels 24 bit 192 kHz

Bitclock PLL ensures perfect synchronisation even in varispeed operation

Lock Range: 31.5 kHz – 50 kHz

Jitter when synced to input signal: < 1 ns

Jitter suppression: > 50 dB (2.4 kHz)

SPDIF optical

1 x optical, according to IEC 60958

Accepts Consumer and Professional format

Lock Range: 27 kHz – 200 kHz

Jitter when synced to input signal: < 1 ns

Jitter suppression: > 50 dB (2.4 kHz) 25.5

Digital Outputs

ADAT optical

1 x TOSLINK

Standard: 8 channels 24 bit, up to 48 kHz

Double Speed (S/MUX): 4 channels 24 bit 96 kHz

Quad Speed (S/MUX4) : 2 channels 24 bit 192 kHz

SPDIF optical

1 x optical, according to IEC 60958

Format Consumer (SPDIF) according to IEC 60958

Sample rate 28 kHz up to 200 kHz

General

Power supply: USB bus power or external power supply

Typical power consumption: 2.9 Watts

Max. power consumption: 4.6 Watts

Current at 5 V bus power operation: 600 mA (2.9 Watts)

Current at 12 V external power: 240 mA (2.9 Watts)

Dimensions (WxHxD): 108 x 35 x 181 mm (4.25" x 1.4" x 7.1")

Weight: 680 g ( 1.5 lbs)

Temperature range: +5° up to +50° Celsius (41° F up to 122°F)

Relative humidity: < 75%, non condensing

Driver support

- Windows 10 / 8 / 7 / Vista / XP SP2 (32 & 64 bit)

- Apple Mac OS X 10.6 or up (Core Audio)

System Requirements

Computer with at least Pentium Core 2 Duo CPU.
